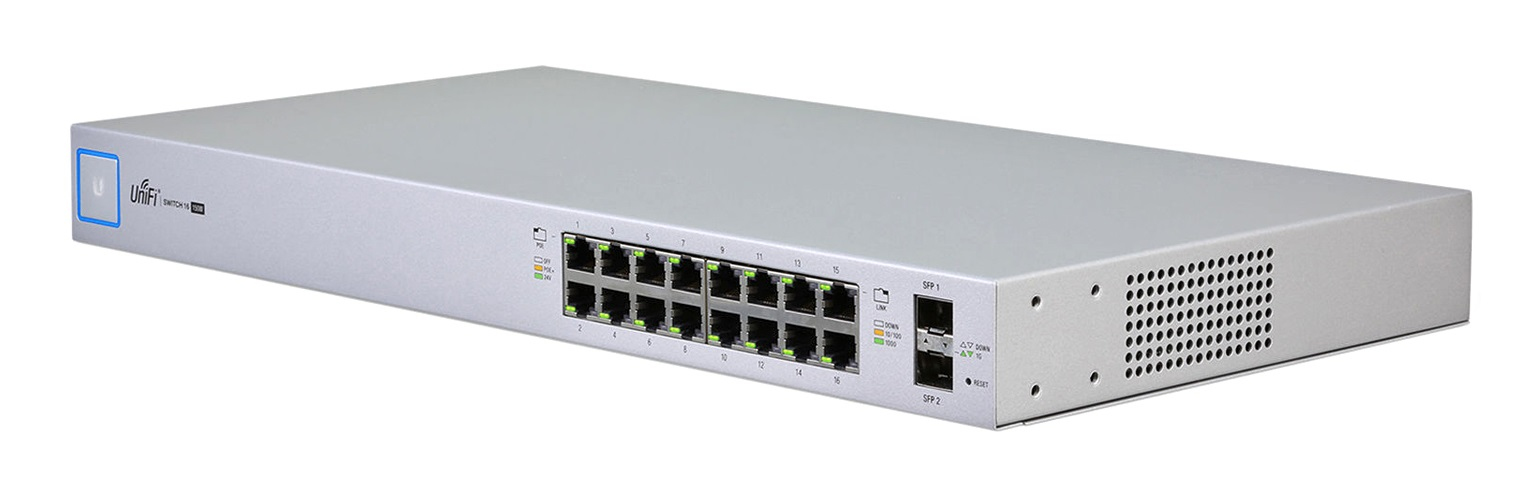

Ubiquiti UniFi Switch, 16 ports, 150W
US-16-150W – efficiency for demanding users
The UniFi US-16-150W provides high capacity thanks to its 18 independent ports. Two of them (SFP) are responsible for optic connectivity and the 16 remaining ports support 802.3af/at PoE+ or 24V passive PoE.
The Ubiquiti US-16-150W provides efficient, reliable operations. This high quality device is based on modern technology and durable components. The device skilfully supports development in various environments.
Installation
US-16-150W is distinguished by versatile installation options. It can be placed on a desk or a wall as well as mounted in a rack. UniFi integration enables centralised management.
Key features
- 16 Gigabit RJ-45 port
- 2 SFP ports
- 1 serial port
- installed in a rack or on a wall
Structure example
Comparison
US-8-150W | US-16-150W | US-24 |
US-24-250W US-24-500W |
US-48 |
US-48-500W US-48-750W |
|
Gigabit RJ45 Ports | 8 | 16 | 24 | 24 | 48 | 48 |
SFP Ports | 2 | 2 | 2 | 2 | 2 | 2 |
SFP+ Ports | 2 | 2 | ||||
802.3af/at PoE+ | ![]() |
![]() |
![]() |
![]() |
||
24V Passive PoE | ![]() |
![]() |
![]() |
![]() |
||
Sound Level | 34 dBa (fanless) | 34-37 dBa | 34-37 dBa |
38-47 dBa 40-53 dBa |
34-37 dBa |
40-47 dBa 40-48 dBa |
PoE Switch Compatibility for UAPs and UVCs
AP/Camera Model | US-8 | US-8-60W | US-8-150W | US-16-150W | US-24-250W | US-24-500W | US-48-500W | US-48-750W |
UVC-G3 | ![]() |
![]() |
? | ? | ? | ? | ? | ? |
UVC-G3-DOME | ? | ? | ? | ? | ? | ? | ? | ? |
UAP | ![]() |
![]() |
? | ? | ? | ? | ? | ? |
UAP-LR | ![]() |
![]() |
? | ? | ? | ? | ? | ? |
UAP-PRO | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-LITE¹ | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-LR¹ | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-PRO | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-M | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-M-PRO | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-IW² | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-IW-PRO² | ? | ? | ? | ? | ? | ? | ? | ? |
UAP-AC-HD | ![]() |
![]() |
? | ? | ? | ? | ? | ? |
? Compatible with the UniFi switch.
Requires Instant 802.3af Gigabit PoE Converter: INS-3AF-I-G
or INS-3AF-O-G
.
Requires 802.3at power; switch provides 802.3af only.
Note:
¹ UAP-AC-LITE and UAP-AC-LR models manufactured before September 2016 require the Instant 802.3af Gigabit PoE Converter.
² For the UAP-AC-IW and UAP-AC-IW-PRO PoE passthrough is supported by all of the switches listed above except for models US-8 and US-8-60W.
Manufacturer's content
Read more in the manufacturer's documentation
Specifications
Is Oversized | No |
---|---|
Manufacturer | Ubiquiti |
