Networks EdgeSwitch 8 - Managed - Gigabit Ethernet (10/100/1000) - Power over Ethernet (PoE) - Wall mountable

Mfg. SKU: ES-8-150W

SKU: 1022748

EAN: 0810354025686

General
Switch type
Managed
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
Basic switching RJ-45 Ethernet ports quantity
8
Console port
RJ-45
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
Power connector
DC-in jack
Power over Ethernet (PoE)
Y
Wall mountable
Y
€206.76 €168.10
Availability: On request
Management features
Switch type
Managed
Quality of Service (QoS) support
Y
Web-based management
Y
System event log
Y
Design
Stackable
N
Product colour
Black
LED indicators
Activity, LAN, Link, PoE, Speed
Wall mountable
Y
Certification
CE, FCC, IC
Ports & interfaces
Basic switching RJ-45 Ethernet ports quantity
8
Basic switching RJ-45 Ethernet ports type
Gigabit Ethernet (10/100/1000)
SFP module slots quantity
2
Console port
RJ-45
Power connector
DC-in jack
Power over Ethernet (PoE)
Power over Ethernet (PoE)
Y
Power over Ethernet plus (PoE+) ports quantity
8
Power over Ethernet (PoE) voltage range
50 - 75 V
Power over Ethernet (PoE) power per port
34.2 W
Data transmission
MAC address table
8000 entries
Switching capacity
20 Gbit/s
Throughput
14.88 Mpps
Number of trunks
8
Jumbo frames support
Y
Network
Networking standards
IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ab,IEEE 802.1p,IEEE 802.1s,IEEE 802.1w,IEEE 802.1x,IEEE 802.3,IEEE 802.3ab,IEEE 802.3ac,IEEE 802.3ad,IEEE 802.3af,IEEE 802.3ak,IEEE 802.3at,IEEE 802.3u,IEEE 802.3x
10G support
N
Copper ethernet cabling technology
10BASE-T,100BASE-T,1000BASE-T
Port mirroring
Y
Flow control support
Y
Link aggregation
Y
Broadcast storm control
Y
Spanning tree protocol
Y
Active link detection
Y
VLAN support
Y
Virtual LAN features
Tagged VLAN,Port-based VLAN
Number of VLANs
255
Power
Power supply included
Y
AC input voltage
100 - 240 V
AC input frequency
50 - 60 Hz
Power consumption (max)
150 W
Multicast features
Multicast support
Y
Security
DHCP features
DHCP server
Access Control List (ACL)
Y
Access Control List (ACL) rules
100
IGMP snooping
Y
Security algorithms
SNMP,SSH,SSH-2
MAC address filtering
Y
SSH/SSL support
Y
Authentication
Guest VLAN, Port-based authentication
Operational conditions
Operating temperature (T-T)
-25 - 60 °C
Operating relative humidity (H-H)
5 - 95 %
Weight & dimensions
Width
204 mm
Depth
235 mm
Height
43 mm
Weight
1.72 kg
Packaging data
Mounting brackets included
Y
Other features
Input voltage
42 - 56 V

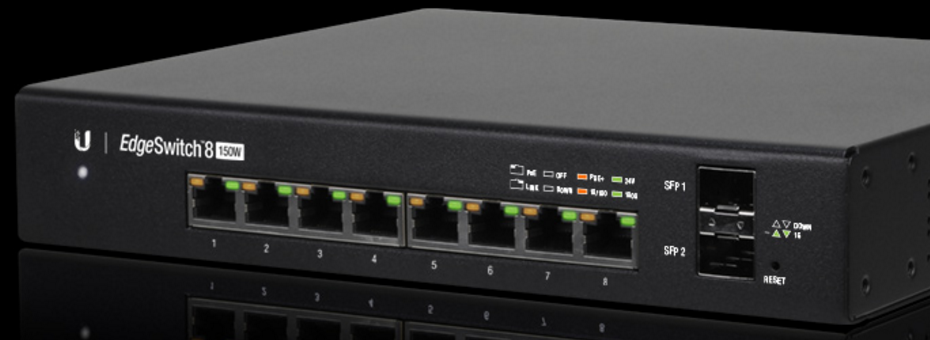

Ubiquiti EdgeSwitch 8-150W – high capacity, intelligent switching

The compact Ubiquiti EdgeSwitch 8-150W is a fully manageable, high capacity PoE+ Gigabit device. The device provides high capacity and intelligent switching technologies.

The EdgeSwitch 8-150W offers versatile port configuration - it is equipped with 8 RJ45 ports that support PoE+, 2 SFP fibre connectivity ports and 1 Serial Port Console. It is perfect for building a stable LAN segment or for the development of the existing structure. The ES 8 150W can be placed on a desk or mounted on a wall.





High quality

The Ubiquiti EdgeSwitch 8-150W is a confirmation of the manufacturer's high quality solutions. It is CE, FCC and IC certified. It can be used at temperatures ranging up to 40 degrees Celsius.





Key features

  • manageable switch
  • 8 Gigabit Ethernet ports
  • 2 SFP module slots
  • managed through a webpage
  • 20 Gbit/s switching capacity
  • PoE support







Comparison


  ES-8-150W ES-16-150W
Total Non-Blocking Throughput 10 Gbps 18 Gbps
Gigabit RJ45 Ports 8 16
SFP+ Ports N/A N/A
SFP Ports 2 2
Max. Power Consumption 150 W 150 W
PoE PoE+ and 24V Passive PoE PoE+ and 24V Passive PoE



Manufacturer's content

 Read more in the manufacturer's documentation

 Read the manual



Specifications
