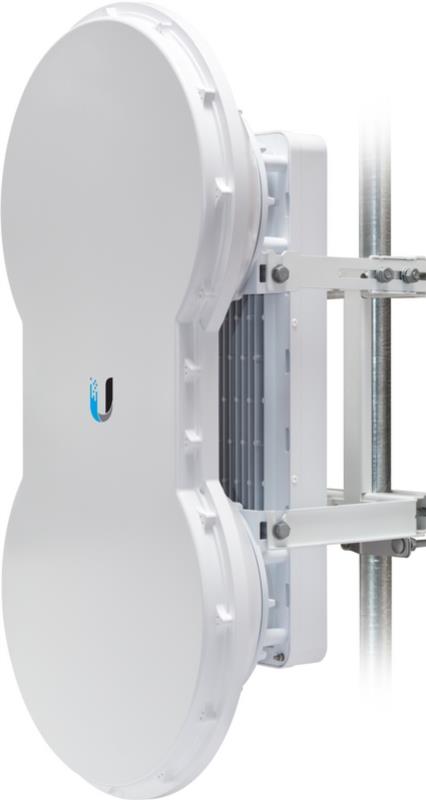

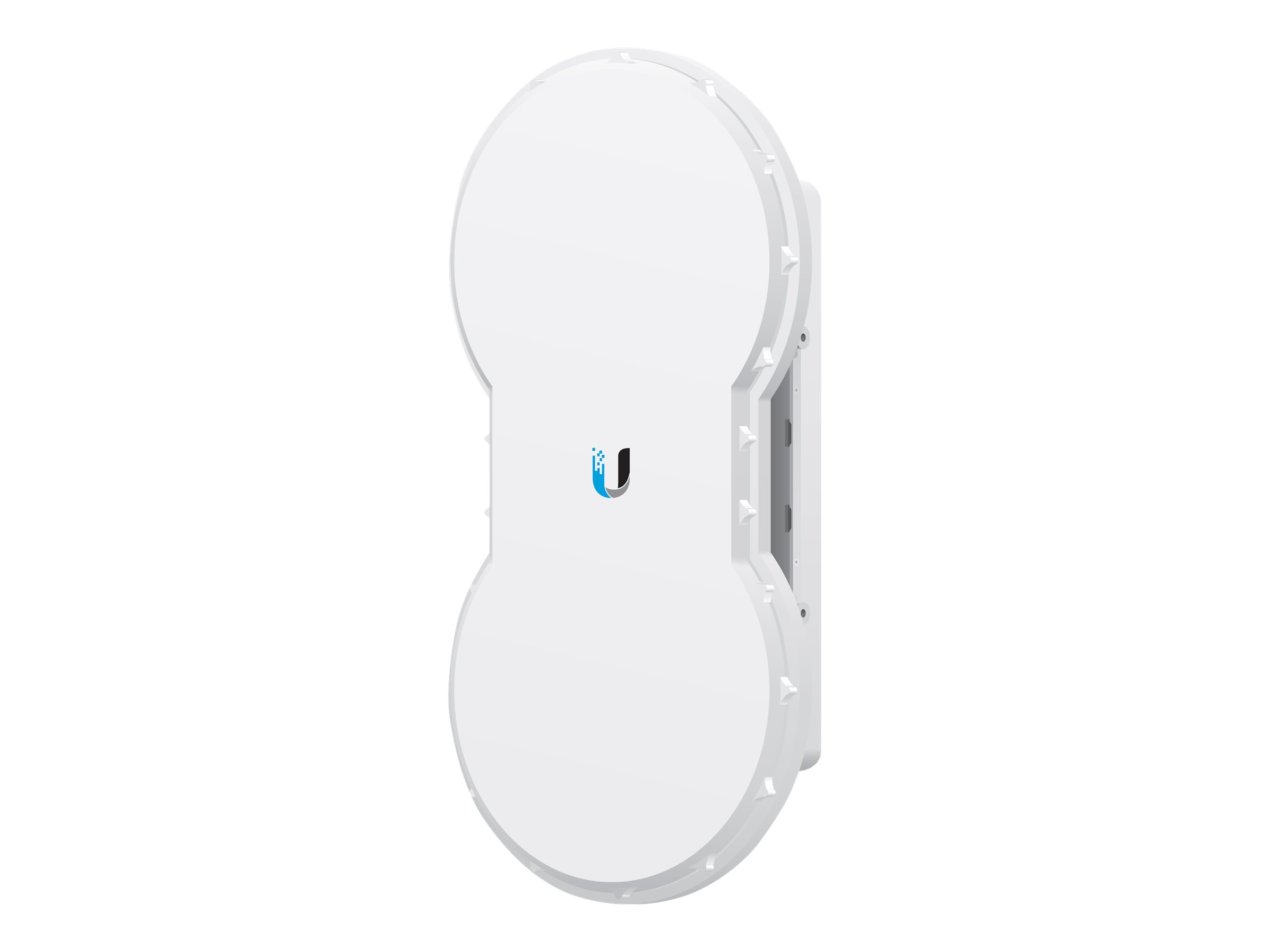

Networks airFiber5 - 23 dBi - 5 GHz - 1024-QAM,16-QAM,256-QAM,64-QAM,QPSK - Sector antenna - Wall - Outdoor

Mfg. SKU: AF-5U

SKU: 1038265

EAN: 0810354022081

General
Antenna gain level (max)
23 dBi
Frequency band
5 GHz
Modulation
1024-QAM,16-QAM,256-QAM,64-QAM,QPSK
Antenna type
Sector antenna
Mounting
Wall
Purpose
Outdoor
Power requirements
42-58VDC
Width
938.4 mm
Depth
468.4 mm
Height
281.4 mm
€1,012.97 €823.55
Availability: 9 pcs.
Loading...
Delivery date from:
Shipping cost from:
Performance
Antenna gain level (max)
23 dBi
Frequency band
5 GHz
Modulation
1024-QAM,16-QAM,256-QAM,64-QAM,QPSK
Features
Antenna type
Sector antenna
Mounting
Wall
Purpose
Outdoor
Product colour
White
Certification
CE, FCC, IC
Weight & dimensions
Width
938.4 mm
Depth
468.4 mm
Height
281.4 mm
Weight
16 kg
Packaging content
Quantity
1
Operational conditions
Operating temperature (T-T)
-40 - 55 °C
Power
Power requirements
42-58VDC
Technical details
Sustainability certificates
RoHS

Revolutionary Ubiquiti solution

Ubiquiti airFiber AF-5U uses innovative solutions which guarantee unrivalled efficiency. Does not interfere with other devices.

The airFiber AF-5U uses the INVICTUS™ data processing system introduced by Ubiquiti. This makes the device unrivalled when it comes to speed.





Installation

The airFiber AF-5U product is equipped with a handle which makes it easy and quick to install. The possibility to install only the handle to which the radio link is connected facilitates its range of functions.



Device status control

 A faster and easier device status control is the result of the use of Radio Alignment Display technology. The radio indicators display the following information: GPS synchronisation status, Master/Slave mode, RF link status, RF overpower, active modular mode.



Key features

  • 5 GHz frequency band
  • 1.2+ Gbps bandwidth
  • 100+ km range
  • size 938.4 x 468.4 x 281.4 mm
  • easy installation
  • modern design





Comparison

AF5

AF5U

AF24

AF24HD

Mid-Band 5 GHz

High-Band 5 GHz 24 GHz 24 GHz

1.2+ Gbps

1.2+ Gbps 1.4+ Gbps 2 Gbps

100+ km

100+ km 13+ km 20+ km
